Stereoscopic Aerial CAD on Point Cloud
StereoCloud3D streams massive LiDAR and photogrammetric point clouds in real time and lets you digitize precise CAD features in true stereoscopic 3D — where every vertex lands exactly on the surface.
What it does
From raw LAS/LAZ to a finished, accurate vector deliverable — without leaving the 3D model.
Tiled level-of-detail streaming keeps clouds of hundreds of millions to billions of points smooth on ordinary workstations.
Side-by-side, top-bottom, quad-buffer or anaglyph stereo for accurate depth perception while you draw.

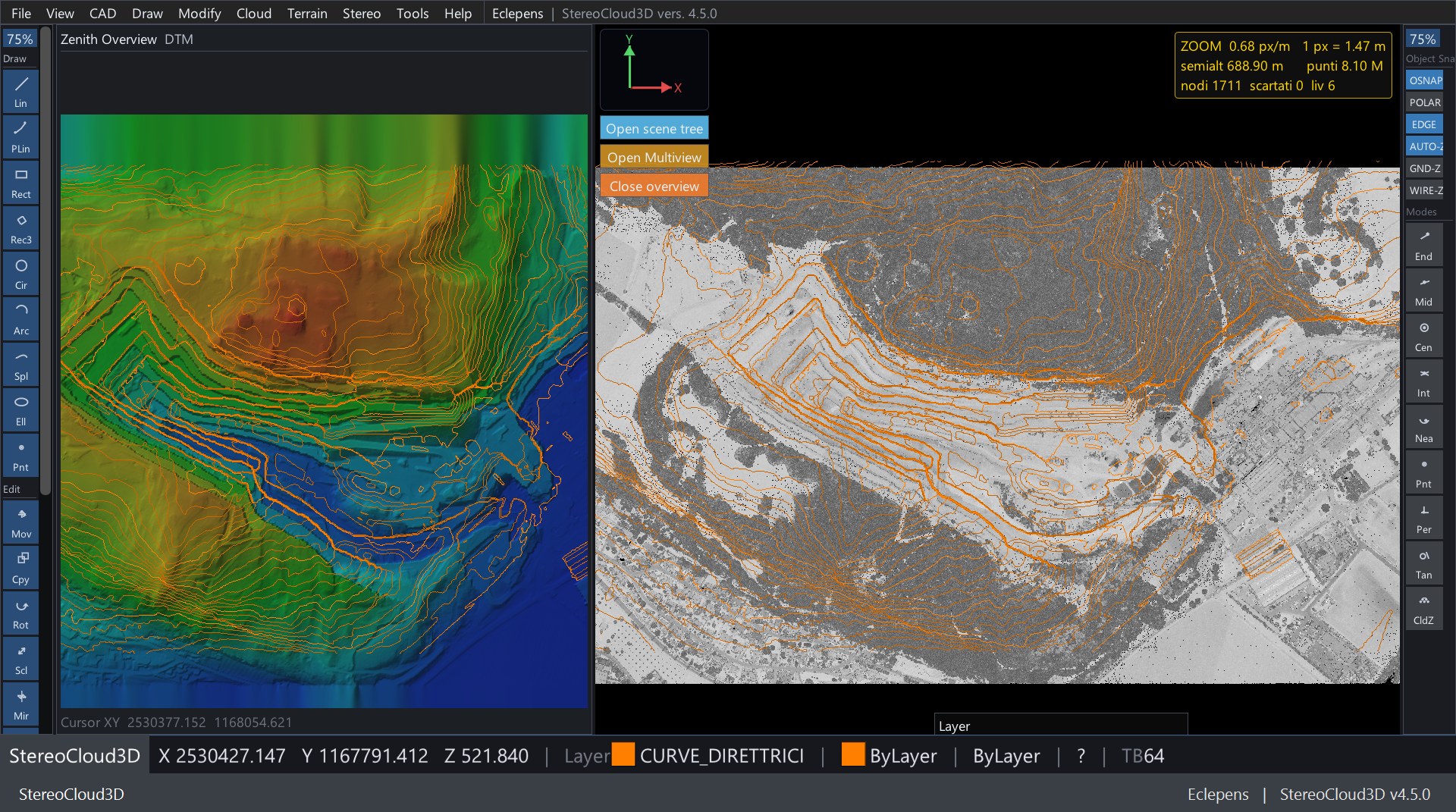

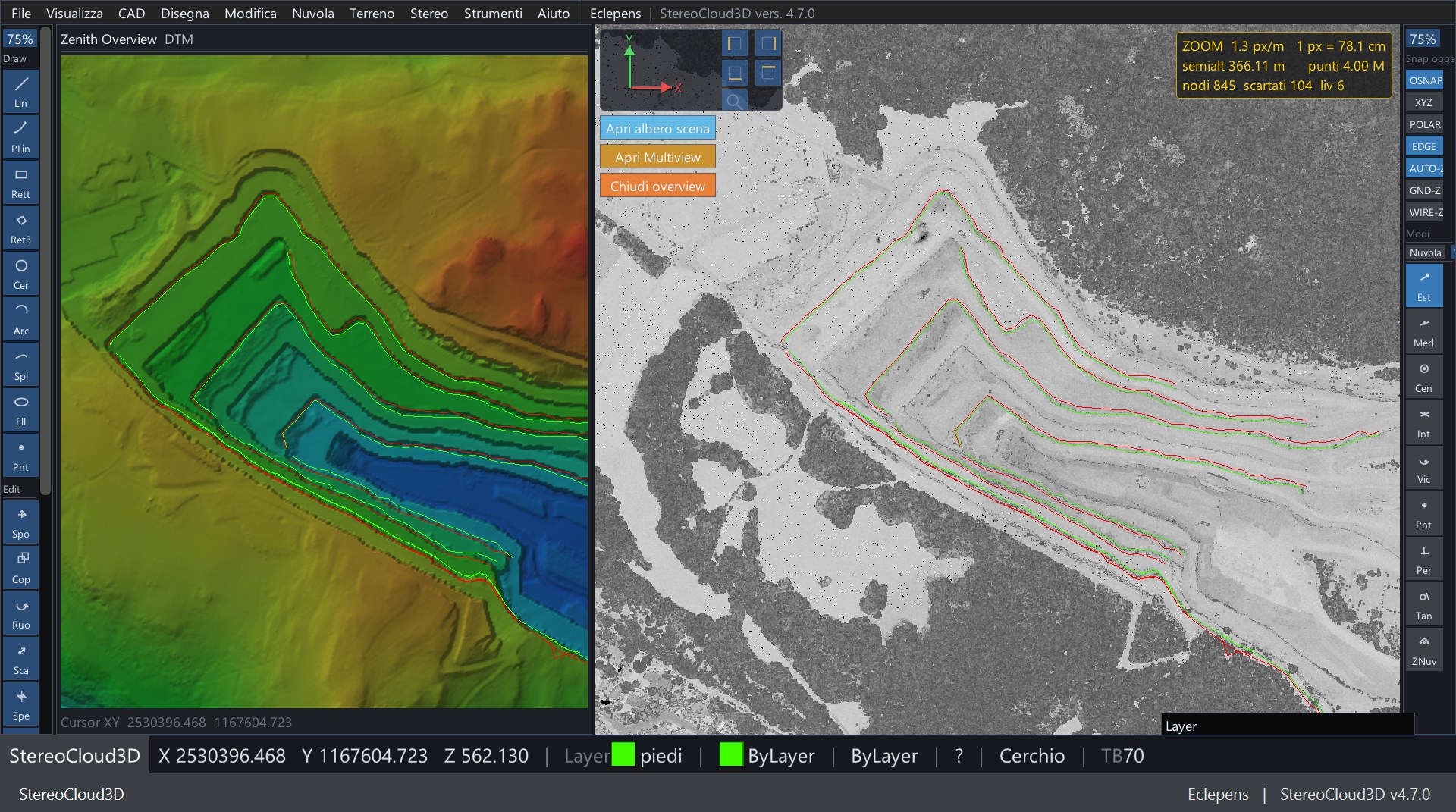

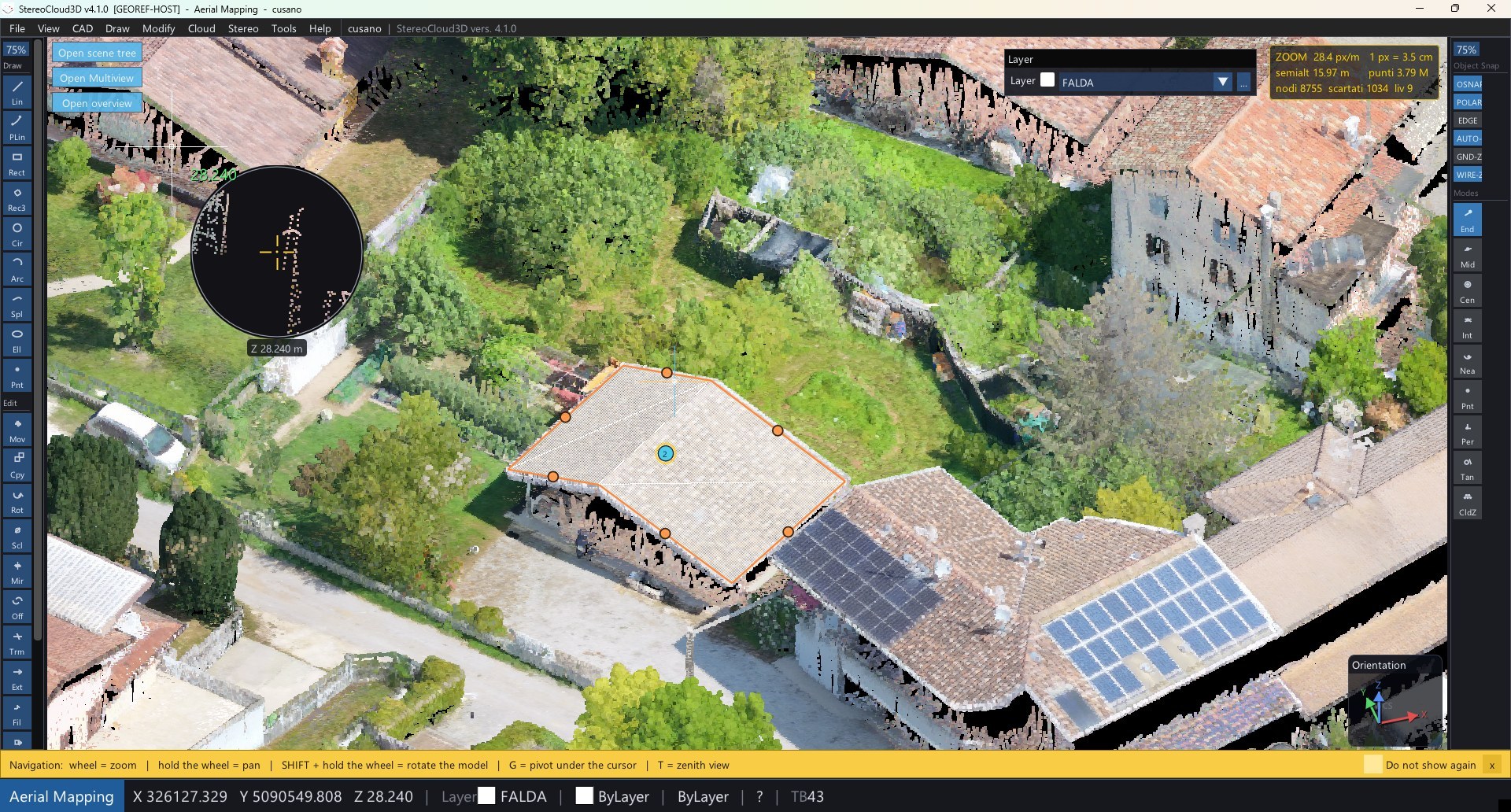

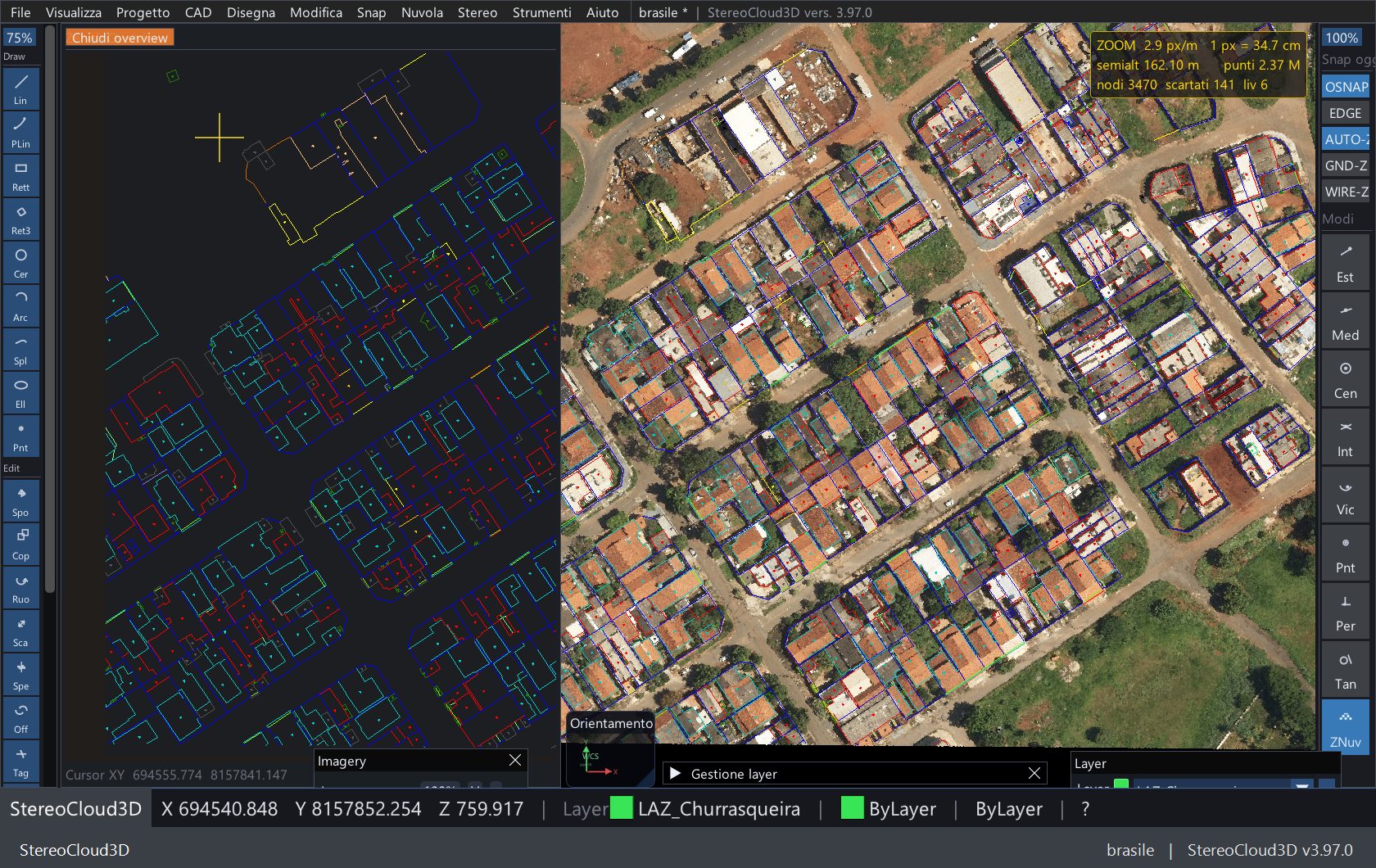

Lines, polylines, breaklines, contours, building outlines and more — snapping elevation straight to the cloud.

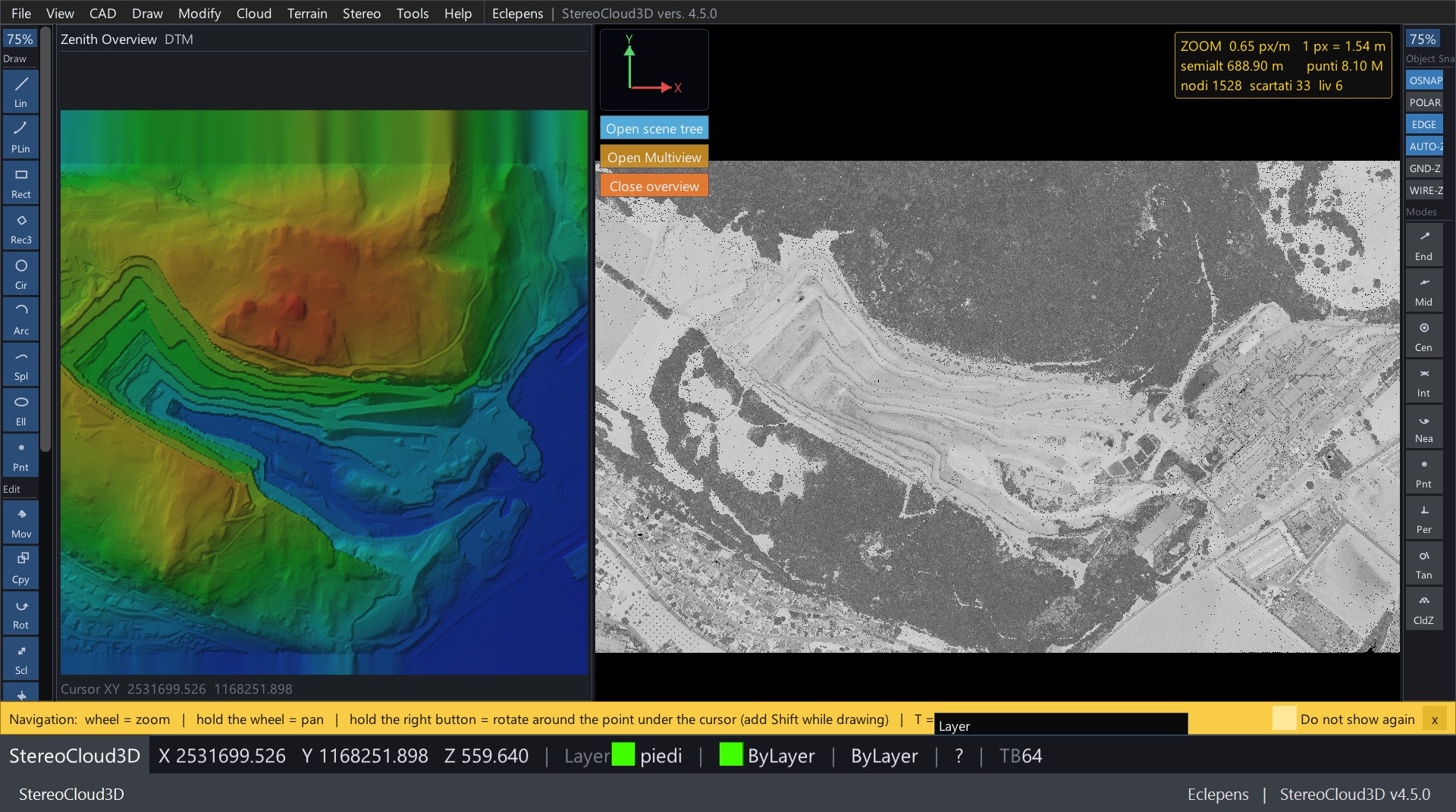

Automatically seed a grid of spot heights sampled from the cloud, with spike removal and stereo verification.
One control trades crispness for fluidity, so huge scenes stay responsive on any GPU.
Per-project reports: operator, time worked, points used, entities produced and dataset sizes.

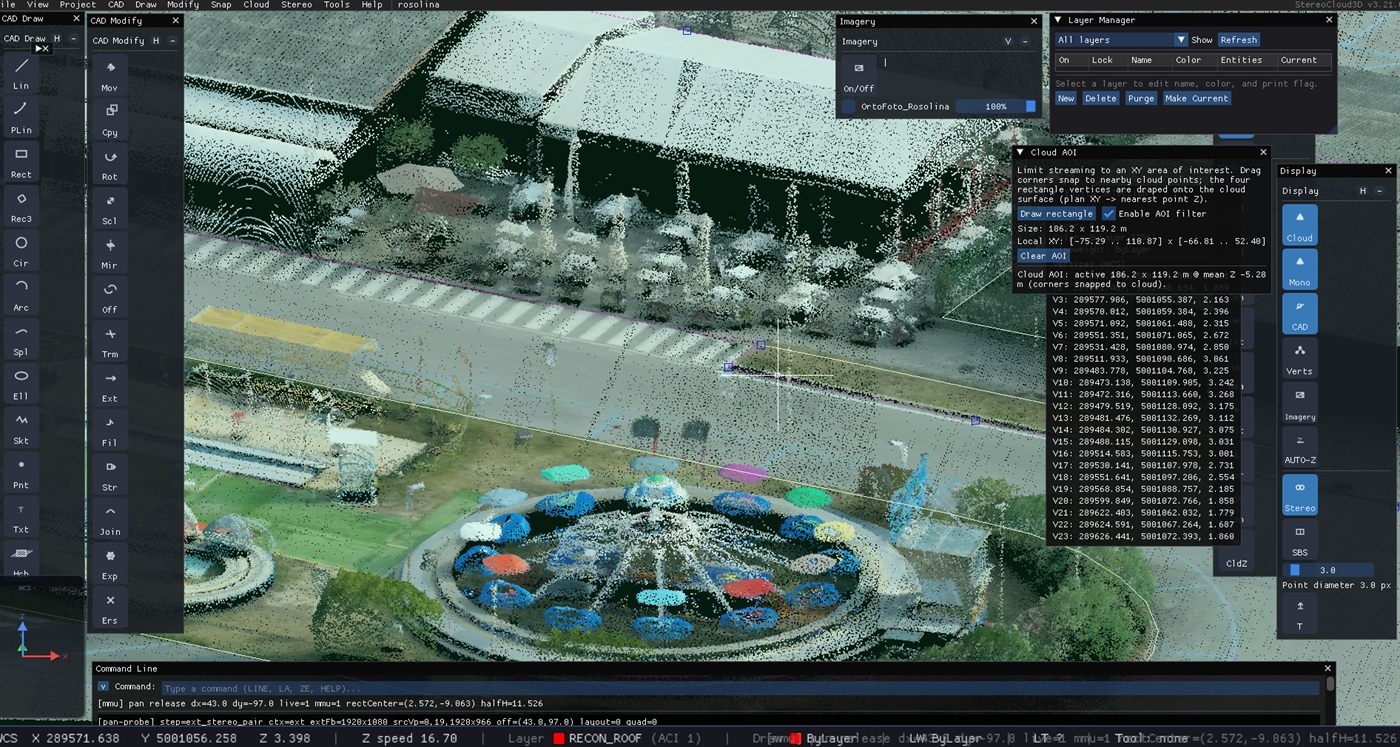

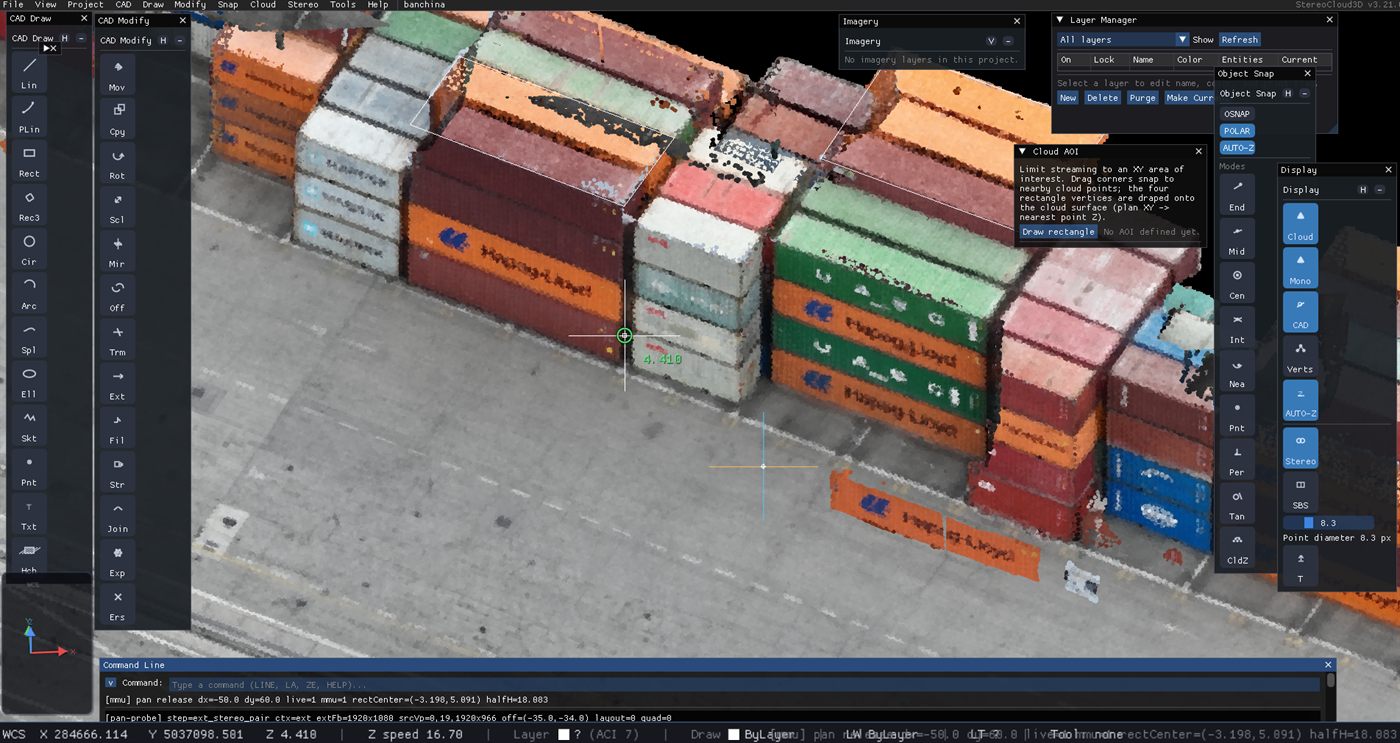

Massive clouds, fluid navigation
A streaming tile engine loads only what is visible, at a resolution matched to your zoom. Pan and zoom stay smooth even on 1.5 billion-point scenes; a crisp full-resolution pass renders the instant you stop.
True depth, real accuracy

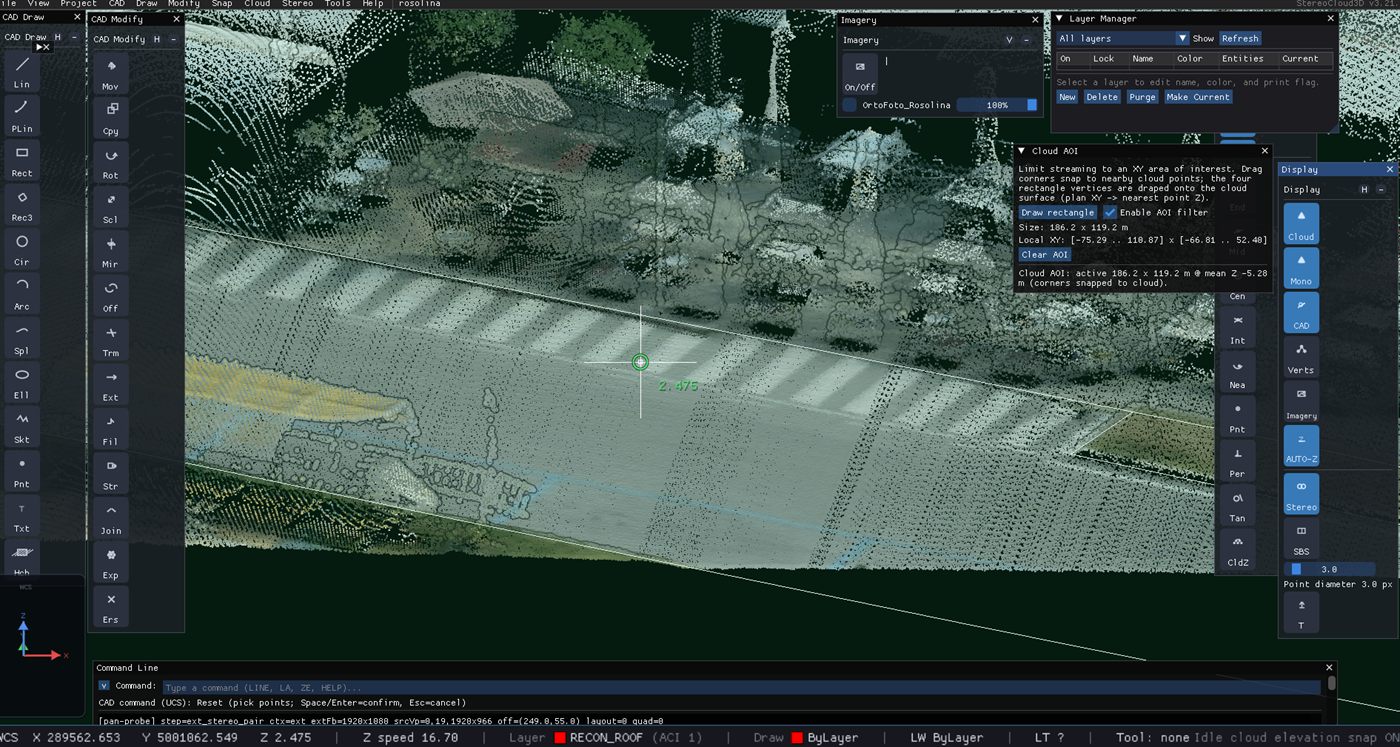

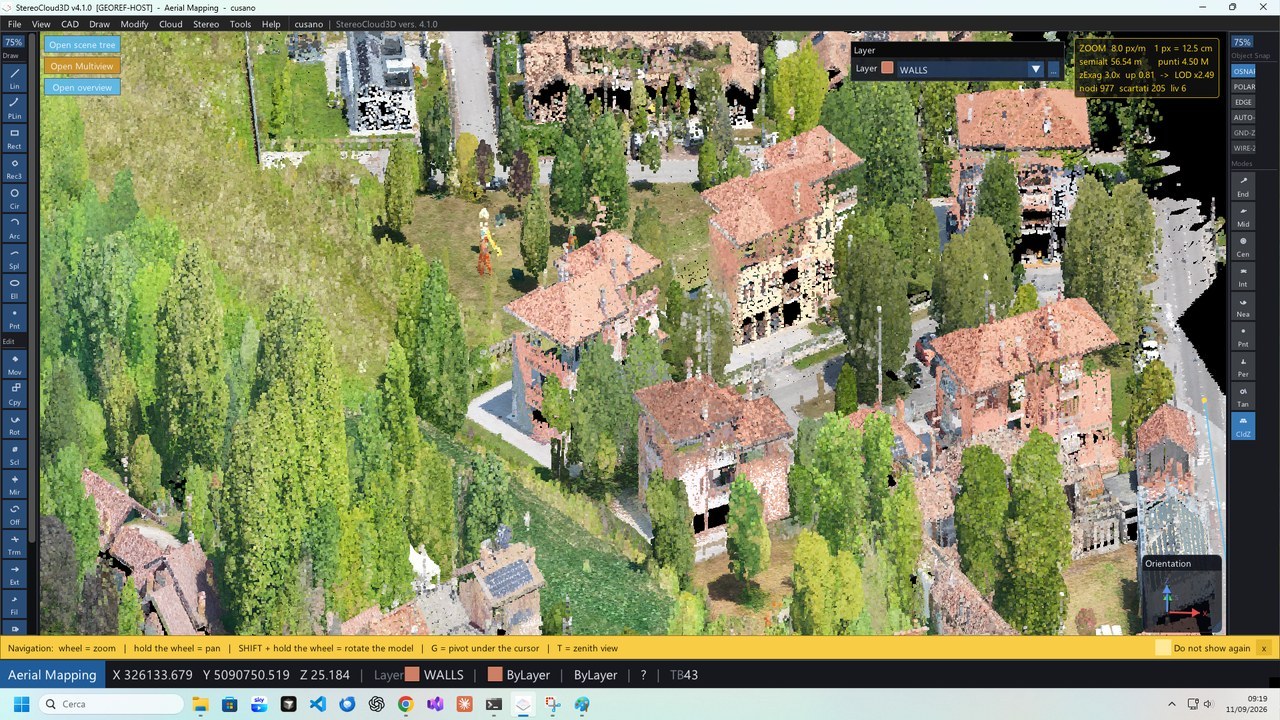

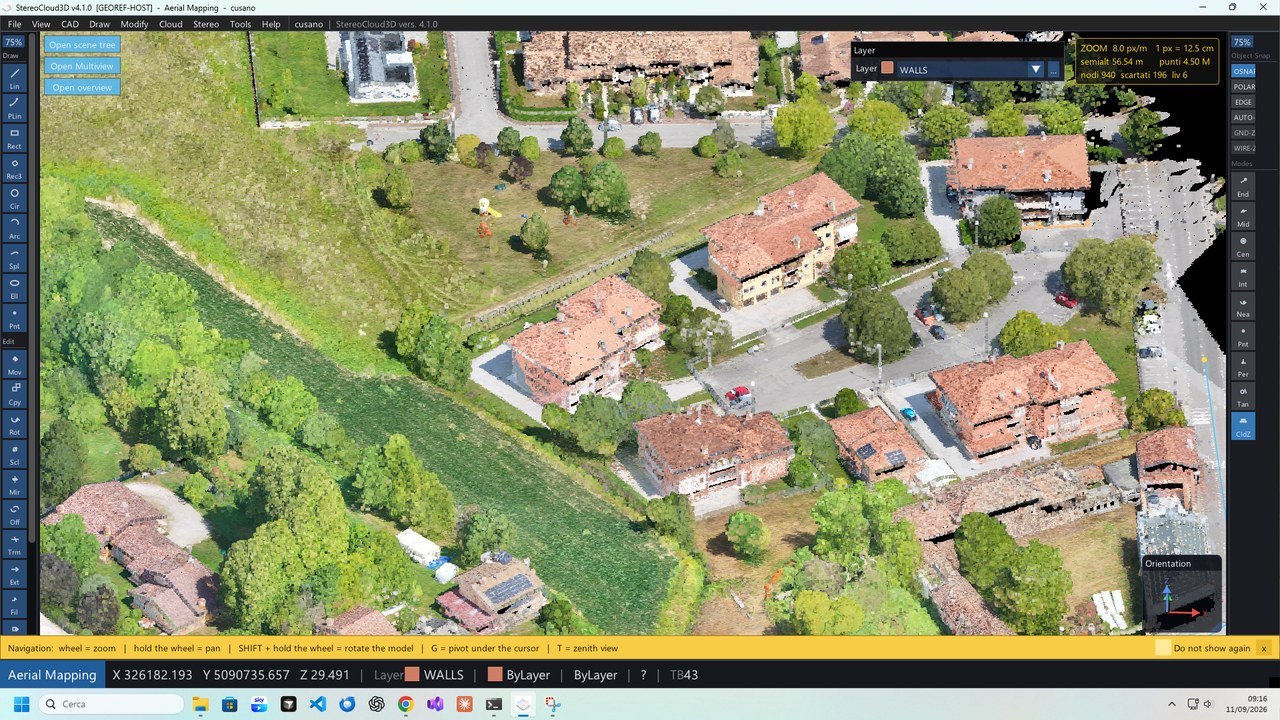

Perceive genuine relief and place vertices on the correct surface — ground, roof ridge or wire — instead of guessing from a flat view. Adjustable parallax and eye-swap make fusion comfortable on your hardware.

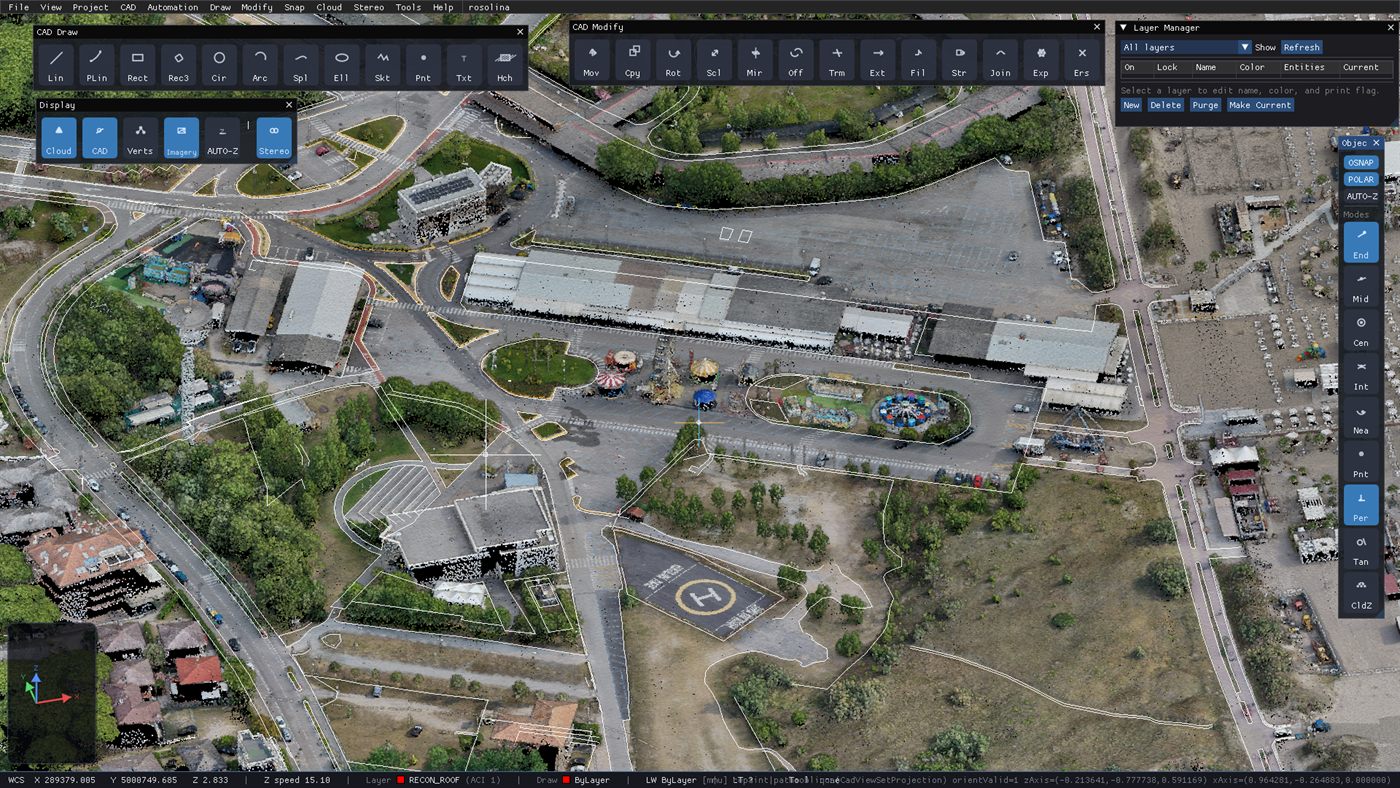

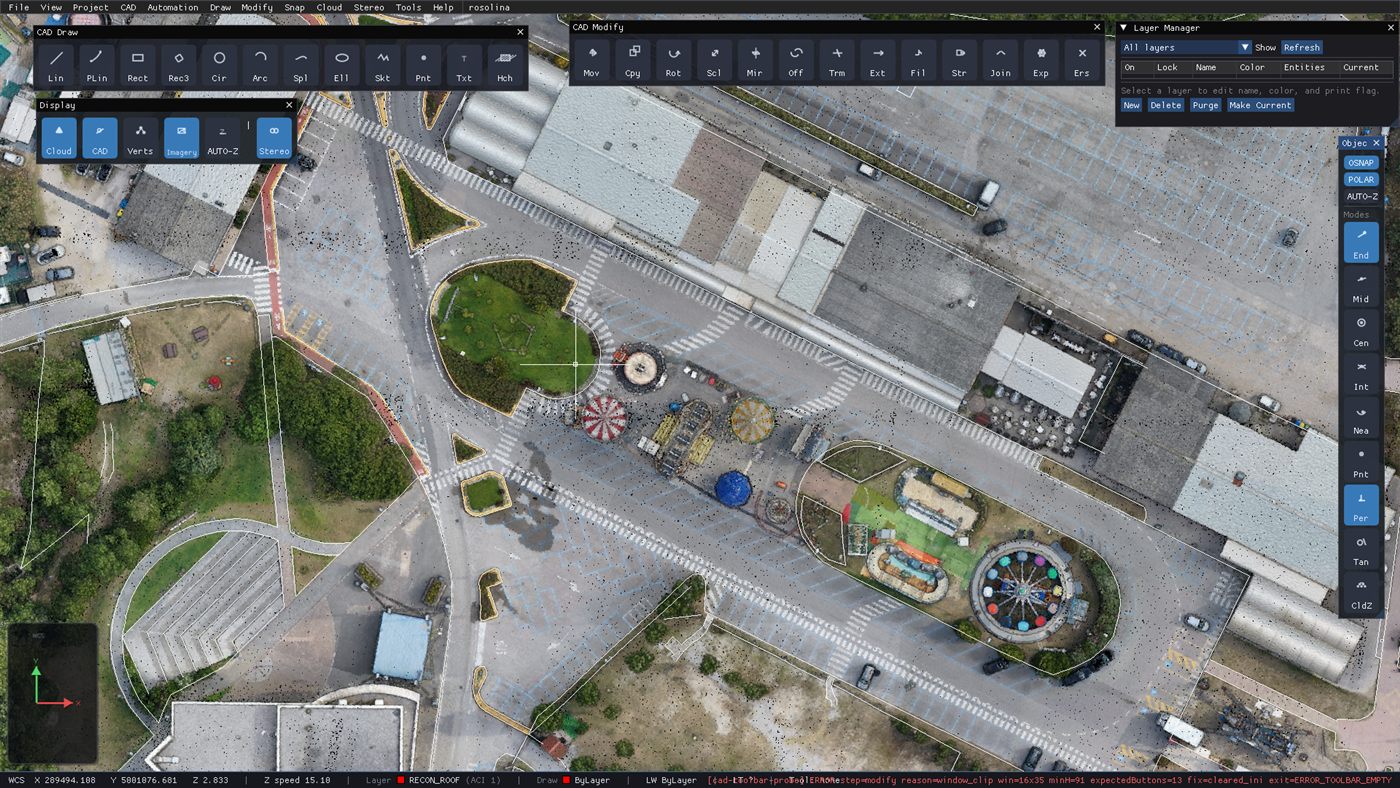

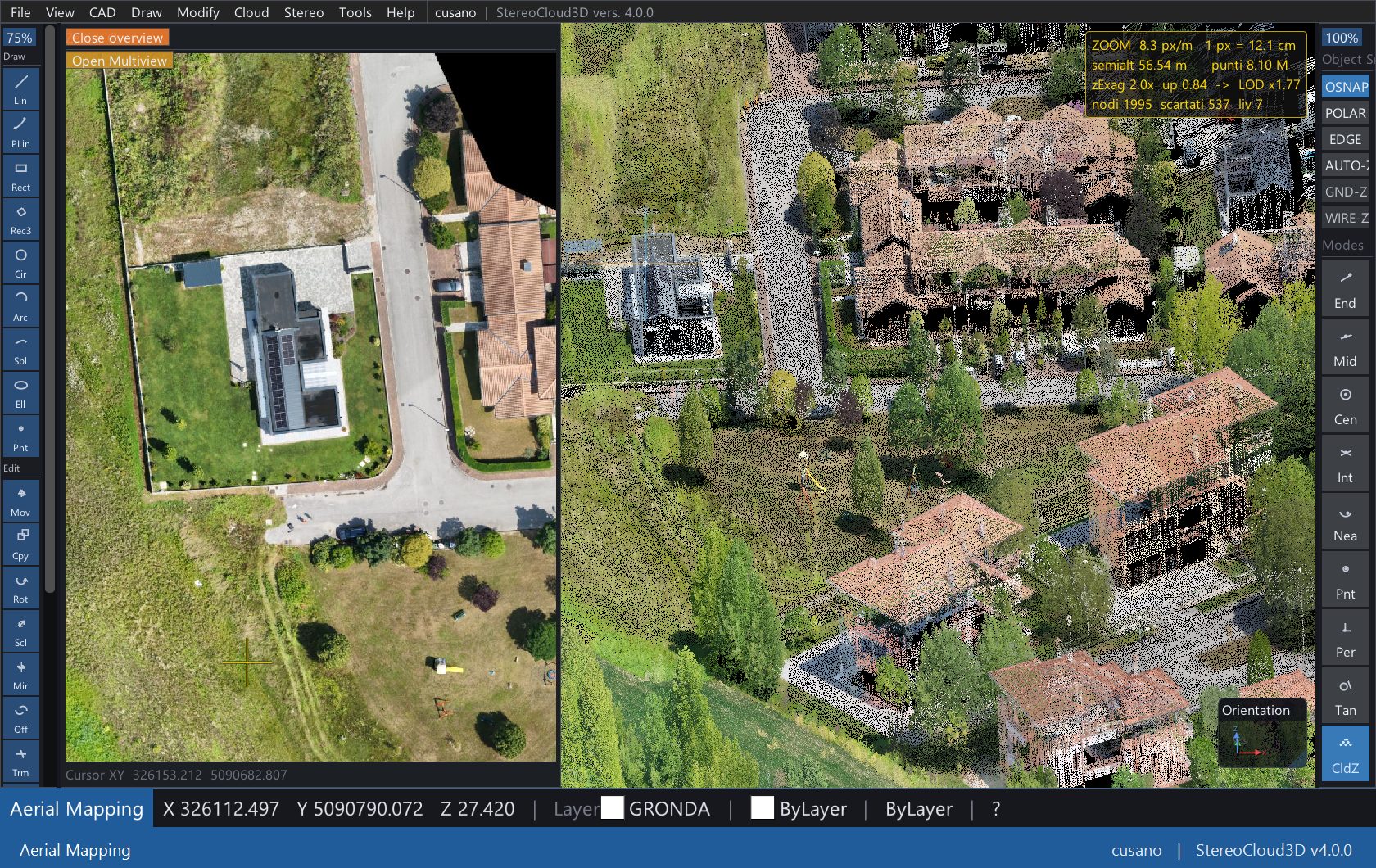

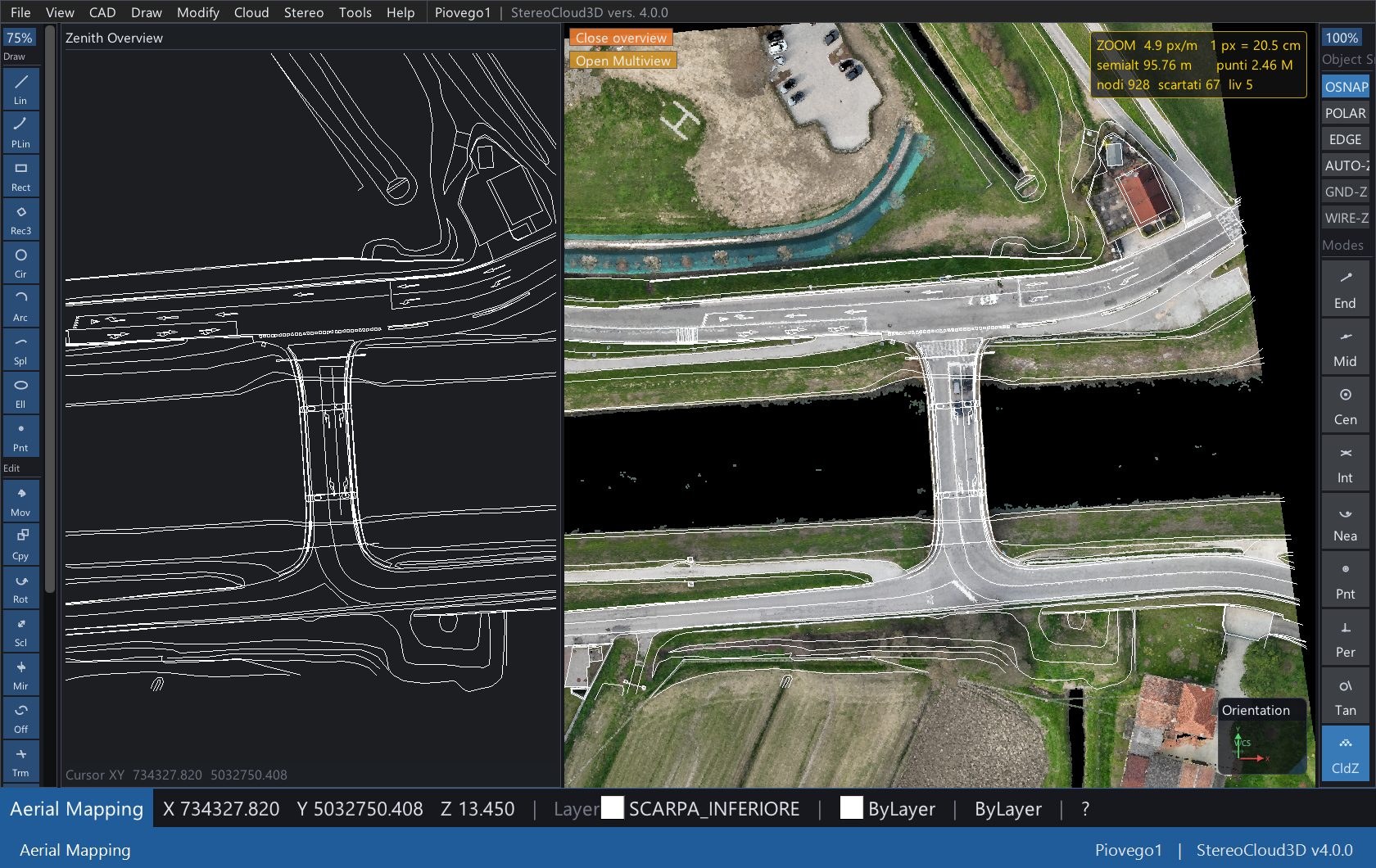

From cloud to deliverable

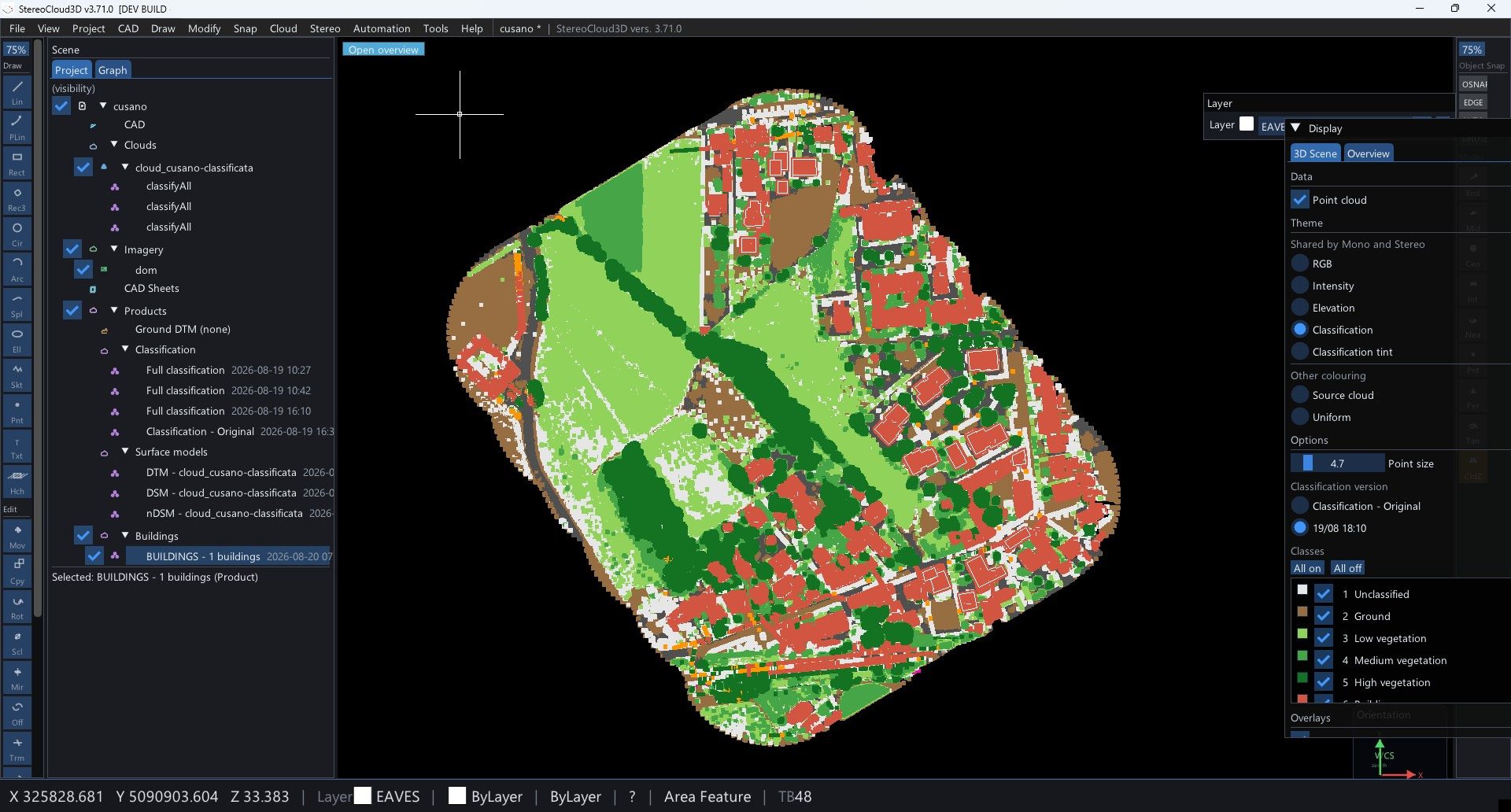

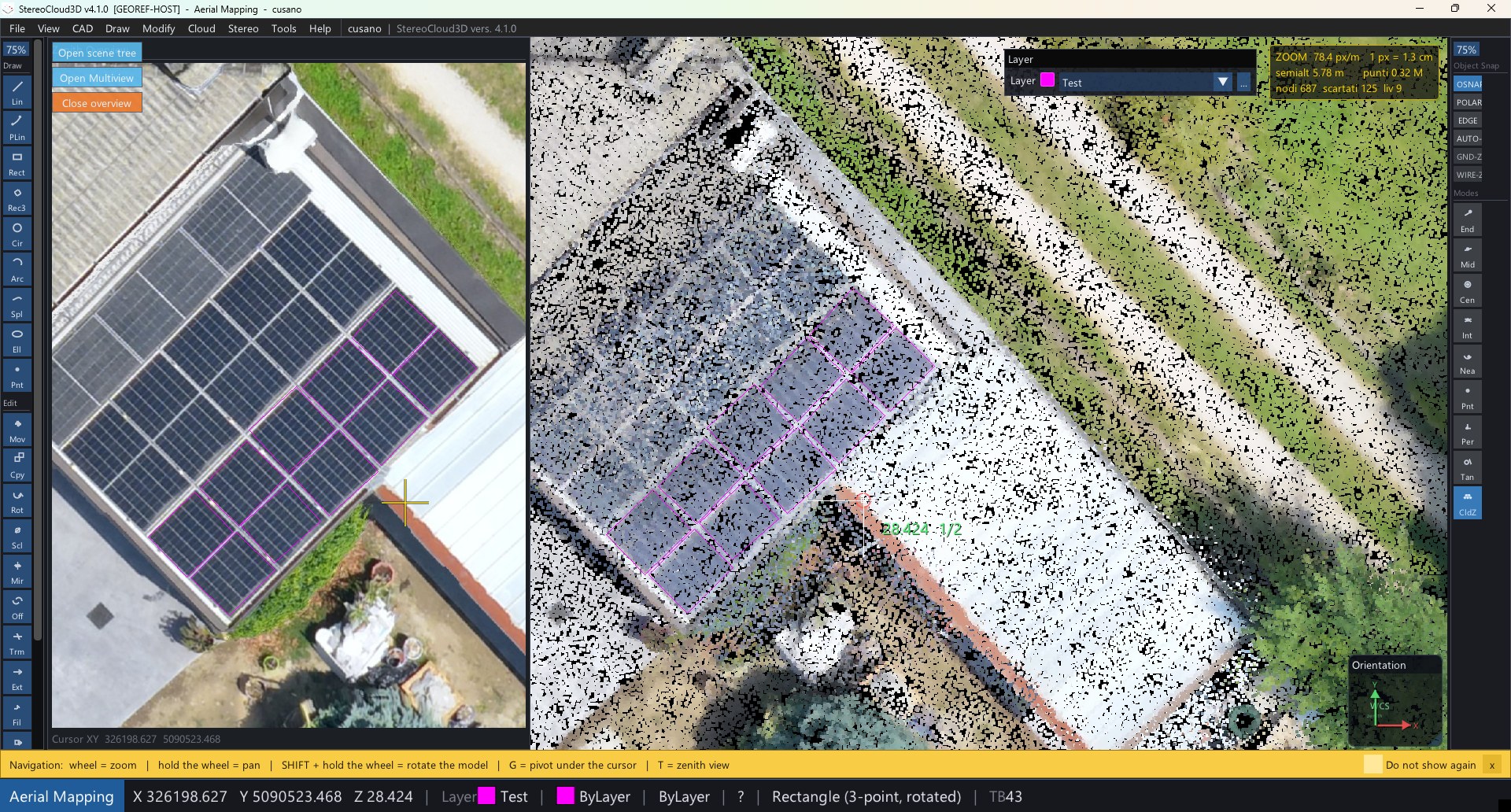

Digitize themed features with one-key macros, generate a complete spot height plan sampled from the terrain, manage layers and groups, and export to DXF.
Performance
StereoCloud3D is engineered around datasets that bring ordinary viewers to a halt.
During navigation the cloud is drawn at a coarser detail so panning and zooming stay fluid; a fraction of a second after you stop, one full-resolution frame is rendered. A single Cloud Performance control — Fast, Balanced or Quality — lets each operator match the trade-off to their GPU.
Get in touch
Tell us about your project and we'll show you StereoCloud3D on your kind of data.
StereoCloud3D is designed and developed by dr. eng. Luca Menci.
This software is the result of more than two decades of expertise and know-how at Menci Software. It is an evolution of StereoCAD — the stereo drawing system on blocks of oriented images.
The product is currently distributed by Iter, Arezzo, Italy.
